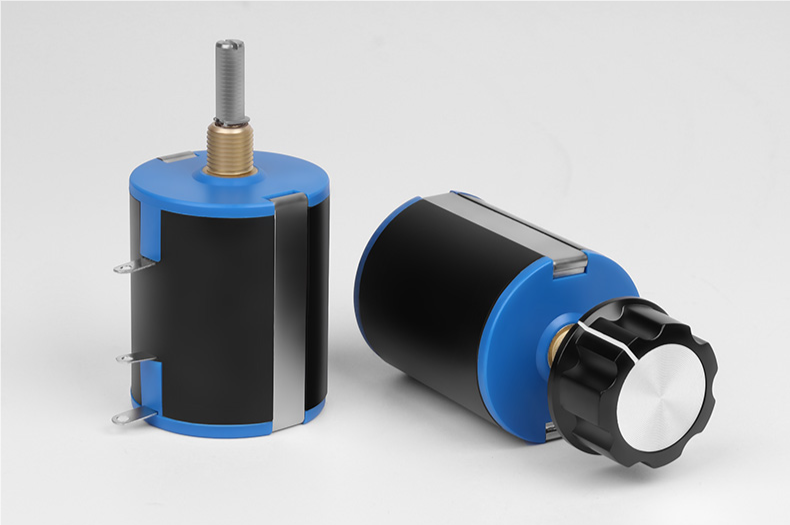

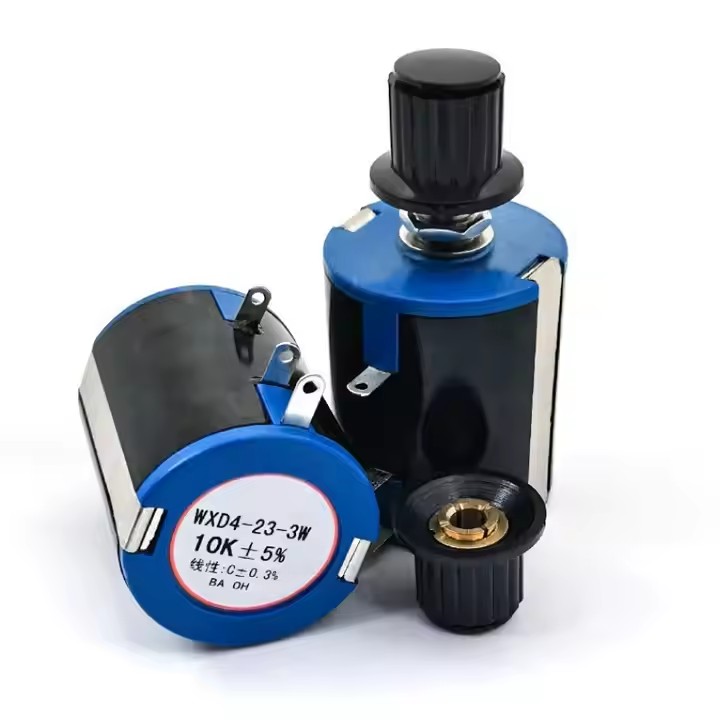

WXD4-23 Precision Potentiometer
- Power: 3W
- Type: Multi-turn Wirewound Potentiometer
- Number of Turns: 10 Turns
- Shaft Diameter: 6mm
- Shaft Length: 25mm
- Outer Diameter: 40mm
- Rotation Angle: 3600° (Note: Typically means 360°, possibly a redundancy in statement but kept for accuracy)
- Packaging: 5 pcs/box
- Resistance Tolerance: ±2%~±5%
Product size
Specification parameters:
| Place of Origin | China |
| China | sichuan |
| Model Number | WXD4-23 |
| Type | Rotary Potentiometer |
| D/C | brand-new |
| Technology | Metal Alloy |
| Resistance | 100~100K |
| Resistance Tolerance | ±2%~±5% |
| Rated Power | 3W |
| Max. Operating Voltage | 500V |
| Operating Temperature | 55℃~+125℃ |
| Tolerance | ±10% |
| Diameter | 22.2mm |
| Built in Switch | None |
| Termination Style | PC Pin |
| Shaft Size | 0.250" (6.35mm) |
| Producing experience | 17 years |
| Type of Company | Factory |
| Brand name | BONENS |
| Type of shaft | Metal shaft |
| Linearity | ±0.1%~±1% |
| SHAFT DIAMETER | 6mm |
| part number | wxd4-23-3w |
| OEM | YES |
| ODM | YES |
| Certificate | TUV RoHs ISO |
application area
WXD4-23 potentiometer is widely used in telecommunications, electrical engineering, electronic instruments and equipment for precise adjustment of DC or low-frequency voltage and current.
Customization and purchase
Since the WXD4-23 potentiometer has a variety of specifications and customization options, it is recommended to clarify specific requirements when purchasing, including resistance, power, accuracy level, working environment conditions, etc. At the same time, choose reputable manufacturers or suppliers for purchase to ensure product quality and after-sales service.
Company Profile
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
