Rheostat sliding WXD4-23-3W precision multi-turn potentiometer 6K8 wire wound potentiometer

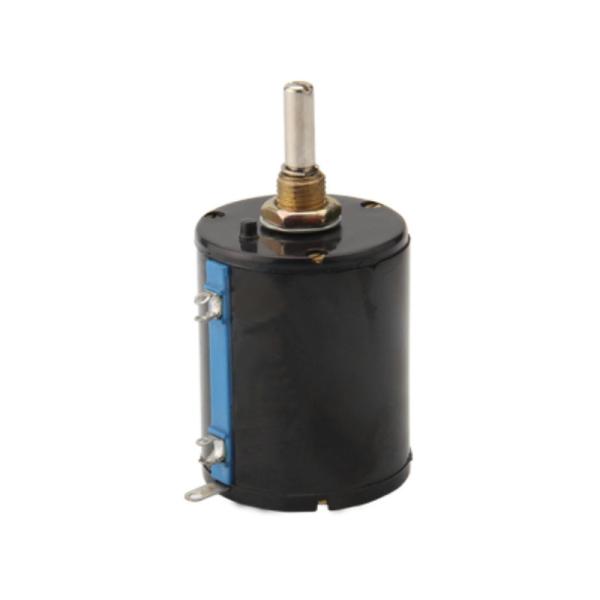

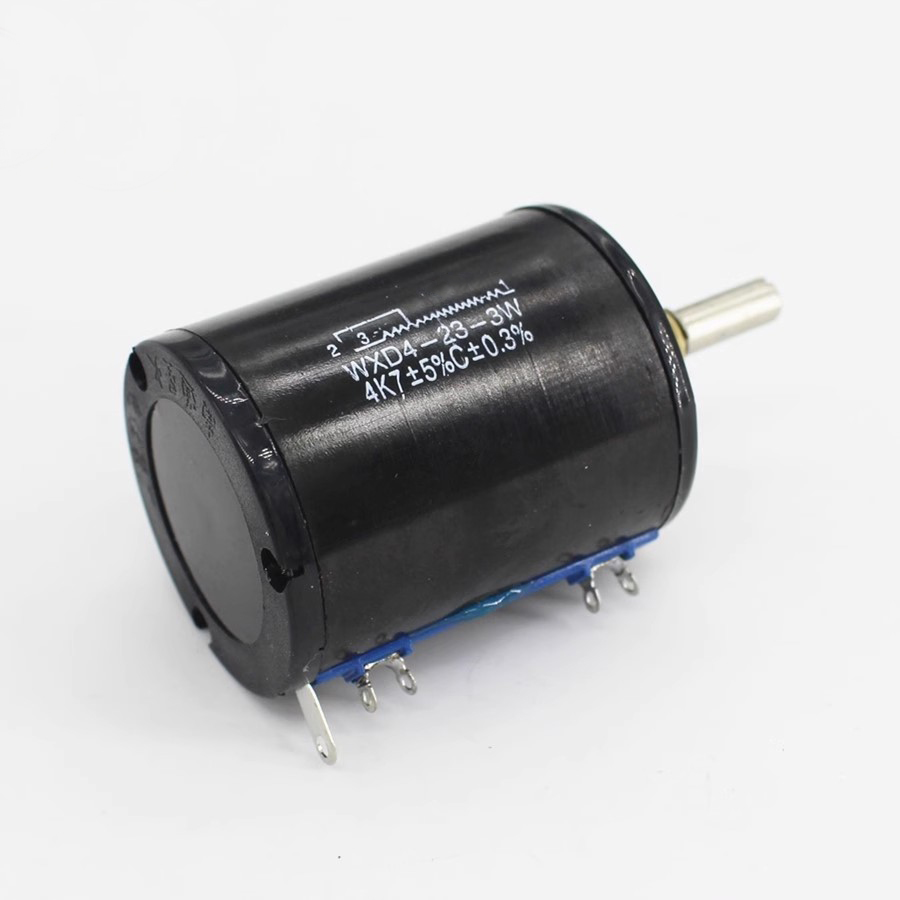

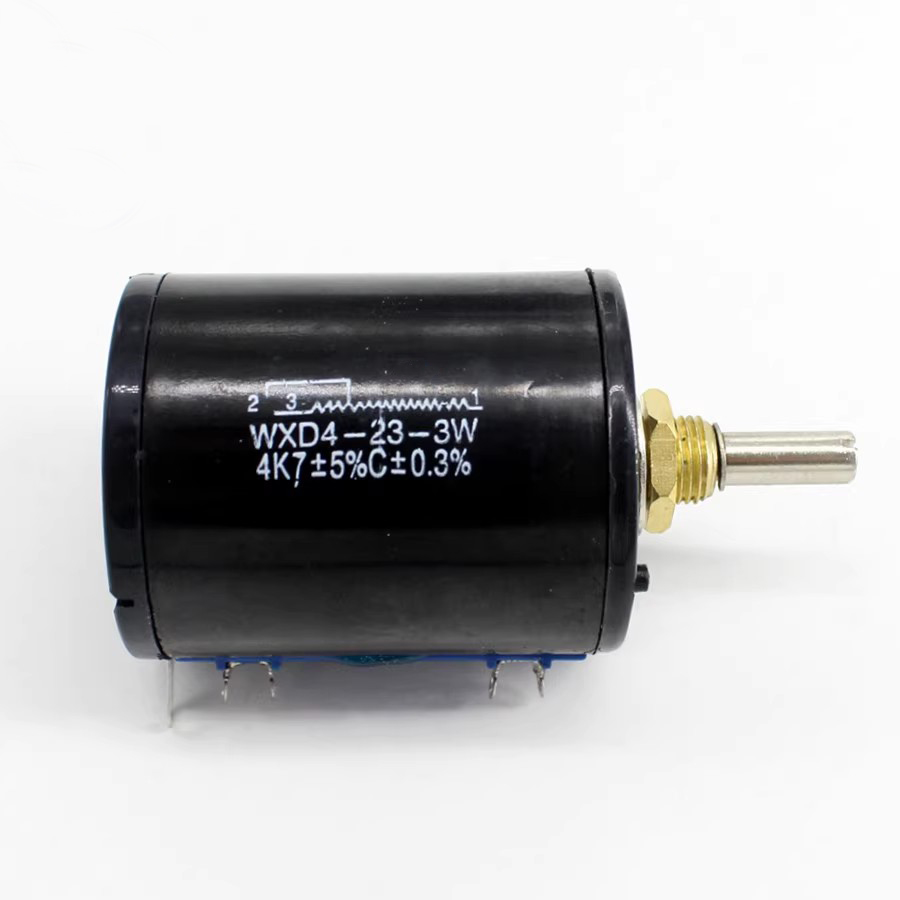

WXD4-23 3W multi-turn potentiometer
Values:100R 220R 330R 470R 560R 680R 1K 1K5 2K2 3K3 4K7 5K6 6K8 10K 15K 22K 33K 47K
1. Application environmental conditions
Ambient temperature: -50 ~ + 100C;
Relative humidity: when the temperature is + 40C, 98%;
Atmospheric pressure: 107 ~ 47Kpa;
Vibration: vibration frequency of 10 ~ 500HZ, acceleration 98m / s2;
Collision: frequency of 40 to 80 beats / min, acceleration 147m / s2;
Centrifugal: acceleration 98m / s2.
2. Main parameters and dimensions
1). Potentiometer nominal power of 3W, maximum working voltage of 200V (DC or AC RMS).
2). The total nominal potentiometer resistance range of 82Ω ~ 100KΩ, its resistance series according to Table 2 (ie E12 series). Total Resistance error of + -2%, + --5% and + 10%.
3). Linear precision potentiometers divided + -0.2%, + - 0.3% + - 0.5% and + 1%.
4). Potentiometer type, species code and fill in the example in the contract: WXD4-23-3-10KΩ + -5% -C + -0.3-25ZS-3-4-GB / T15880-95 example is the model and variety code, rated power, nominal resistance and error, linear precision, shaft length, shaft type, wear-resistant grades, this standard code.
Product size
3. Main technical features
1). Dielectric strength: to withstand 750V (50HZ AC RMS) 1 minute, without breakdown, flying fox phenomenon;
2). Insulation resistance: Before the influx of> = 200MΩ, after the tide ≥20MΩ;
3). The rotational torque: 50 ~ 500gf.cm, the torque ratio is 1: 3;
4). Wear rating: 3 10000 weeks, 4 5000 weeks;
5). Constant hot flashes: The 40 + -2C, relative humidity 93C = -3%, after 96 hours after ΔR / R does not exceed C = -1%;
6). Electrical load: After 48 hours of rated power load ΔR / R is not more than 1%.,
Specification parameters:
| Place of Origin | China |
| China | sichuan |
| Model Number | WXD4-23 |
| Type | Rotary Potentiometer |
| D/C | brand-new |
| Technology | Metal Alloy |
| Resistance | 100~100K |
| Resistance Tolerance | ±2%~±5% |
| Rated Power | 3W |
| Max. Operating Voltage | 500V |
| Operating Temperature | 55℃~+125℃ |
| Tolerance | ±10% |
| Diameter | 22.2mm |
| Built in Switch | None |
| Termination Style | PC Pin |
| Shaft Size | 0.250" (6.35mm) |
| Producing experience | 17 years |
| Type of Company | Factory |
| Brand name | BONENS |
| Type of shaft | Metal shaft |
| Linearity | ±0.1%~±1% |
| SHAFT DIAMETER | 6mm |
| part number | wxd4-23-3w |
| OEM | YES |
| ODM | YES |
| Certificate | TUV RoHs ISO |
application area
WXD4-23-3W 10K European Multi-Circle Wind Power Power Sliding Voltizer is suitable for telecommunications, electrical, electronic instruments and equipment, as precise adjustment of DC or low-frequency voltage and current. The characteristics of stability
