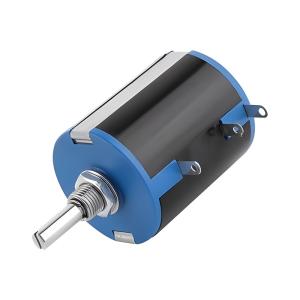

WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer

Name: WXD423 100ohm Multiturns 3W wirewound 101 potentiometer
Brand: BONENS
Price: 5.5 USD

Quality WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer wholesale

Brand Name : BONENS

Model Number : WXD4-23-3W

Place of Origin : China

MOQ : 5

Price : 5.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8days

Packaging Details : 5 pieces/box

Contact Now

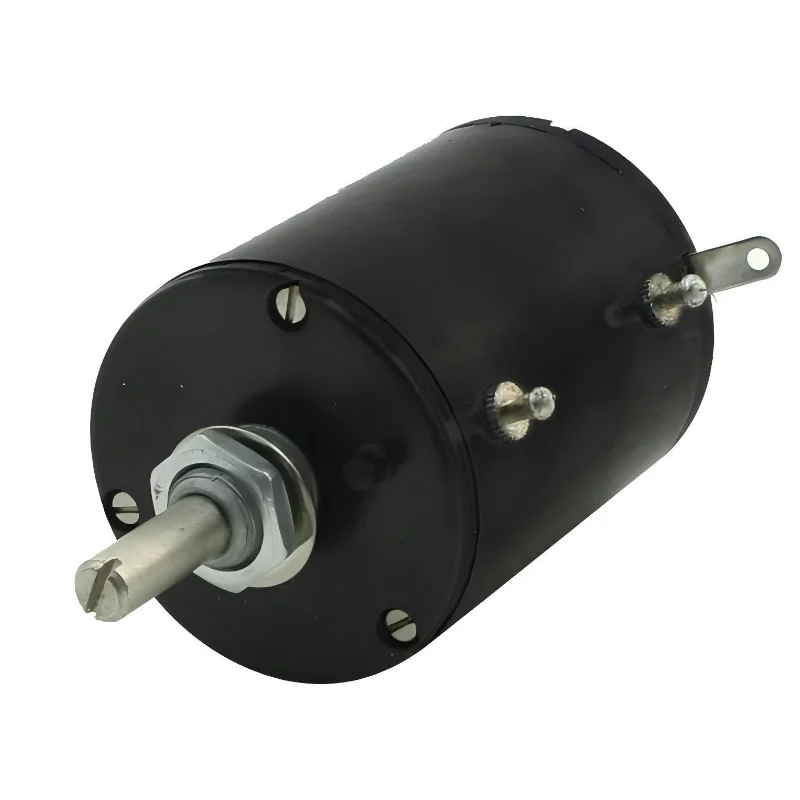

WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer

WXD4-23-3W 10K European Multi-Circle Wind Power Power Sliding Voltizer is suitable for telecommunications, electrical, electronic instruments and equipment, as precise adjustment of DC or low-frequency voltage and current. The characteristics of stability

WXD4-23 wirewound potentiometer

Stock Value: 1K 2K2 4.7K 10K 22K 47K 100K Shaft diameter: 6mm Shaft length: 25mm Outer diameter: 40mm

Power: 3w Linear precision: + 0.1% to + 0.3% The resistance tolerance: + 2% to + 5% Rated voltage: 200 v Ten turns Life: 15000 turns Rated resistance range:330Ω~500KΩ Resistance tolerance:±2% ±5% ±10% Rated power:3W Maximum working voltage:250V Mechanical endurance :10000(cycles)

WXD4-23 wirewound potentiometer

Linearity:±0.1% ±0.25% ±0.5% ±1% Mechanical rotating angle:3600° Length of shaft :L=25mm

Ambient temperature: - 50 ~ + 100 ℃

The relative temperature: when the temperature is + 40 ℃, 98%

The atmospheric pressure:107-47 kpa

Vibration, vibration frequency for 10 ~ 500 hz, the acceleration of 98 m/s2 Collision: frequency of 40 ~ 80 times/min, the acceleration of 147 m/s2

Centrifugal: acceleration of 98 m/s2.

Product parameters

Model Number	WXD4-23
Type	Rotary Potentiometer
Resistance	100~100K
Resistance Tolerance	±2%~±5%
Rated Power	3W
Max. Operating Voltage	500V
Operating Temperature	55℃~+125℃
Tolerance	±10%
Diameter	22.2mm
SHAFT DIAMETER	6mm
Certificate	TUV RoHs ISO

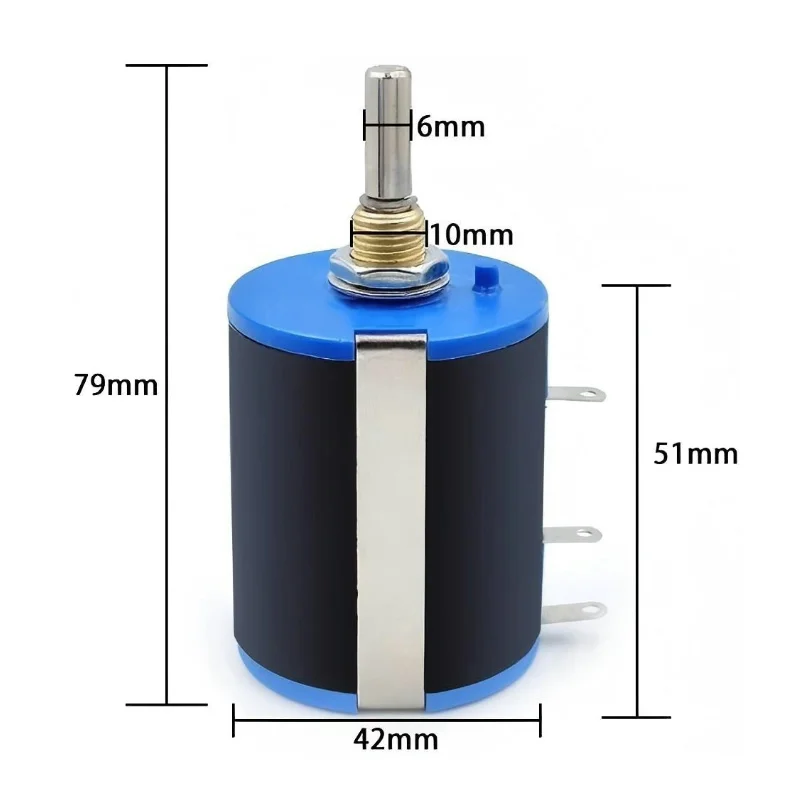

Product size

Q1: How can I place order?

A: You can contact us by email about your order details, or place order on line.

Q2: How can I pay you?

A: After you confirm our PI, we will request you to pay. T/Tand Paypal, Western Union are the most usual ways we are using.

Q3:What’s the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an Pl for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare
the shipment for you.

Q4: How do you take care when your clients received defective products?

A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

Q5: How do you check all the goods in the production line?

A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.

Product Tags:

100ohm Wirewound Potentiometer

101 Wirewound Potentiometer

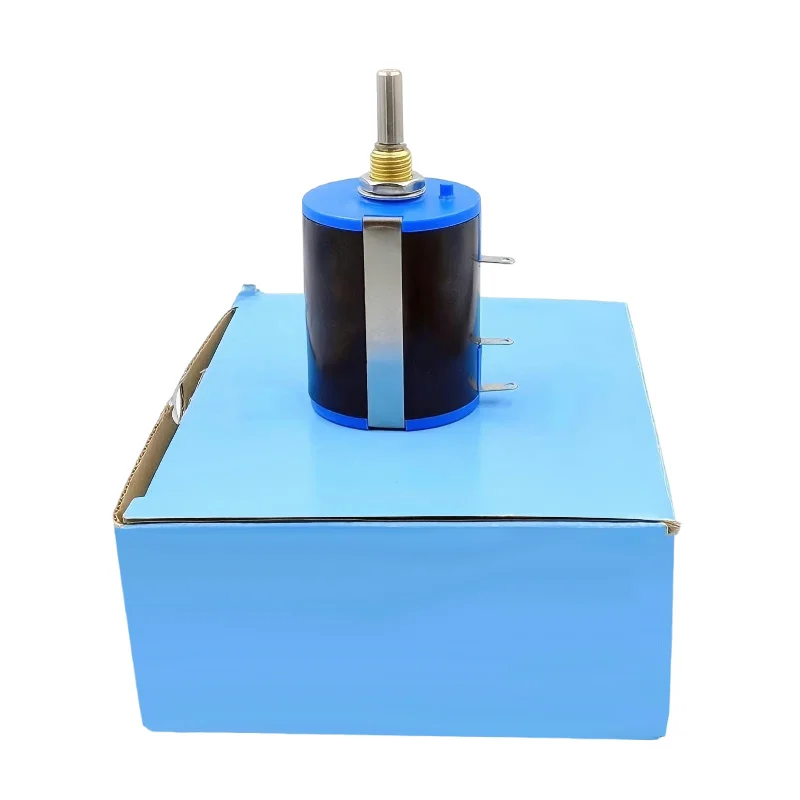

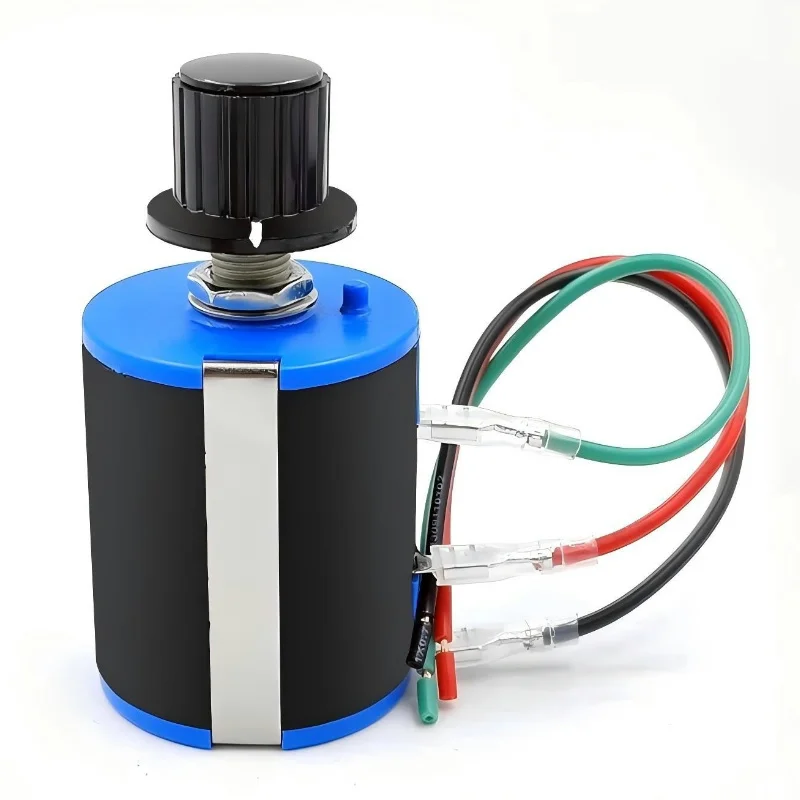

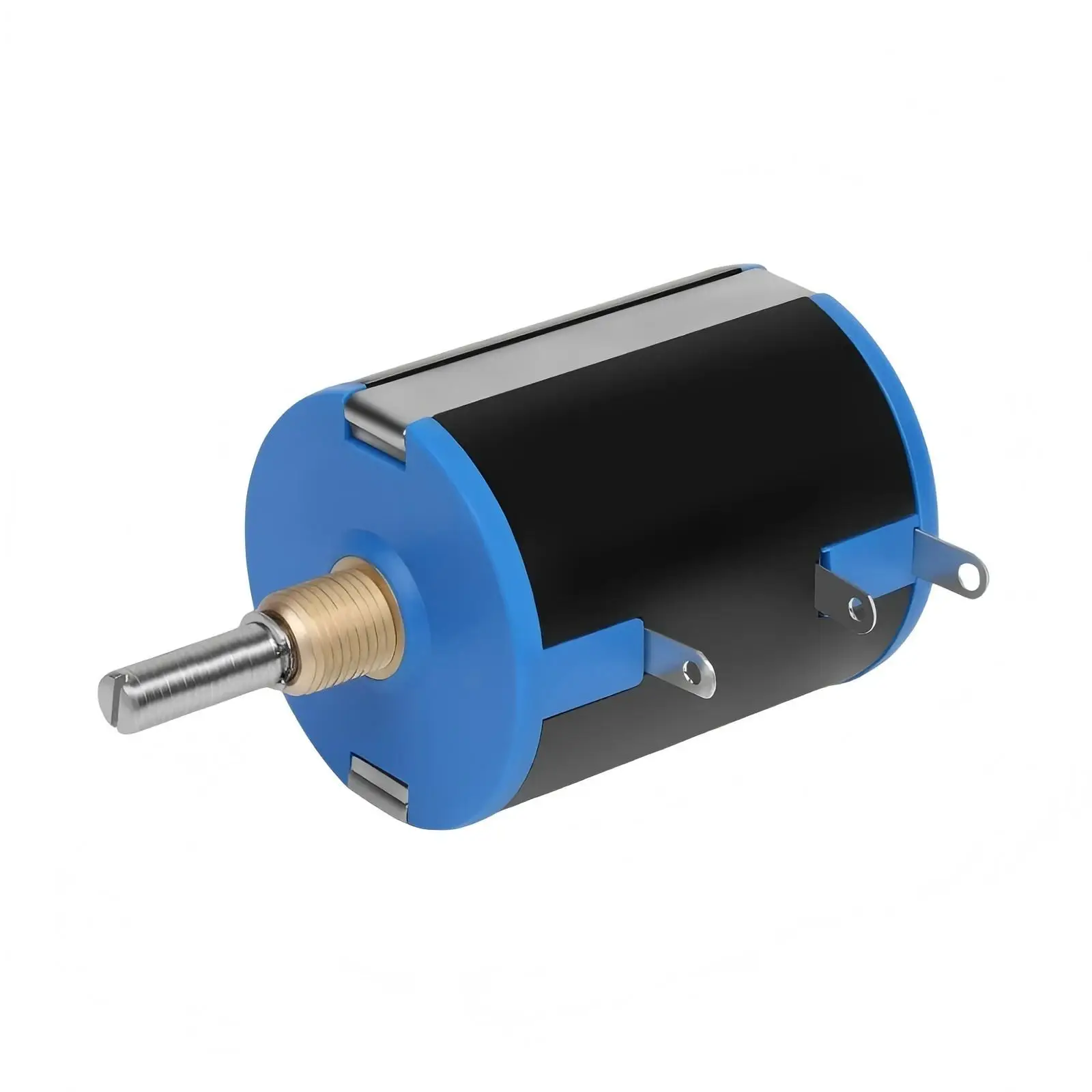

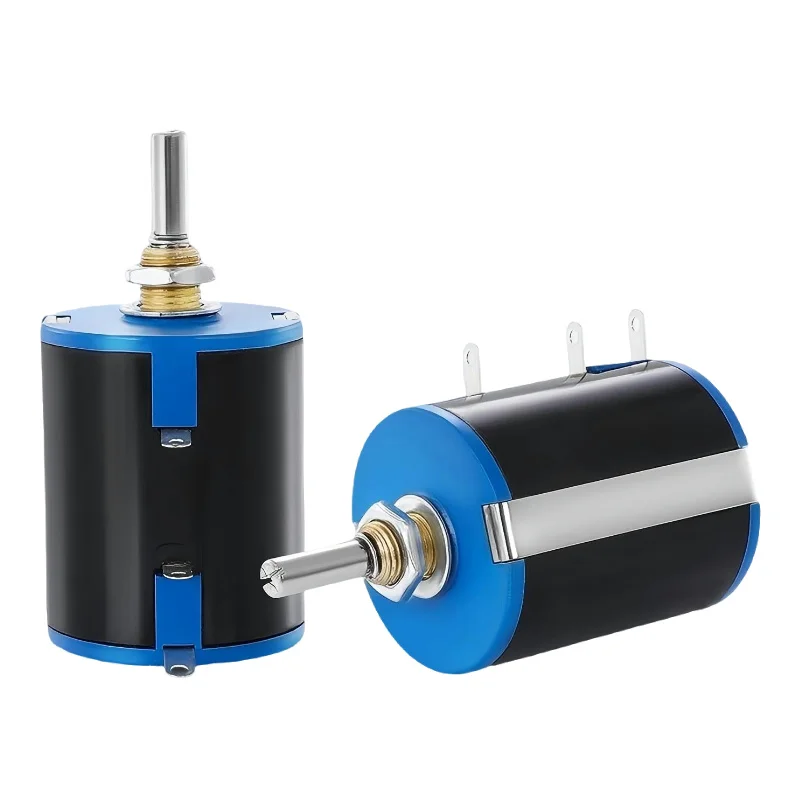

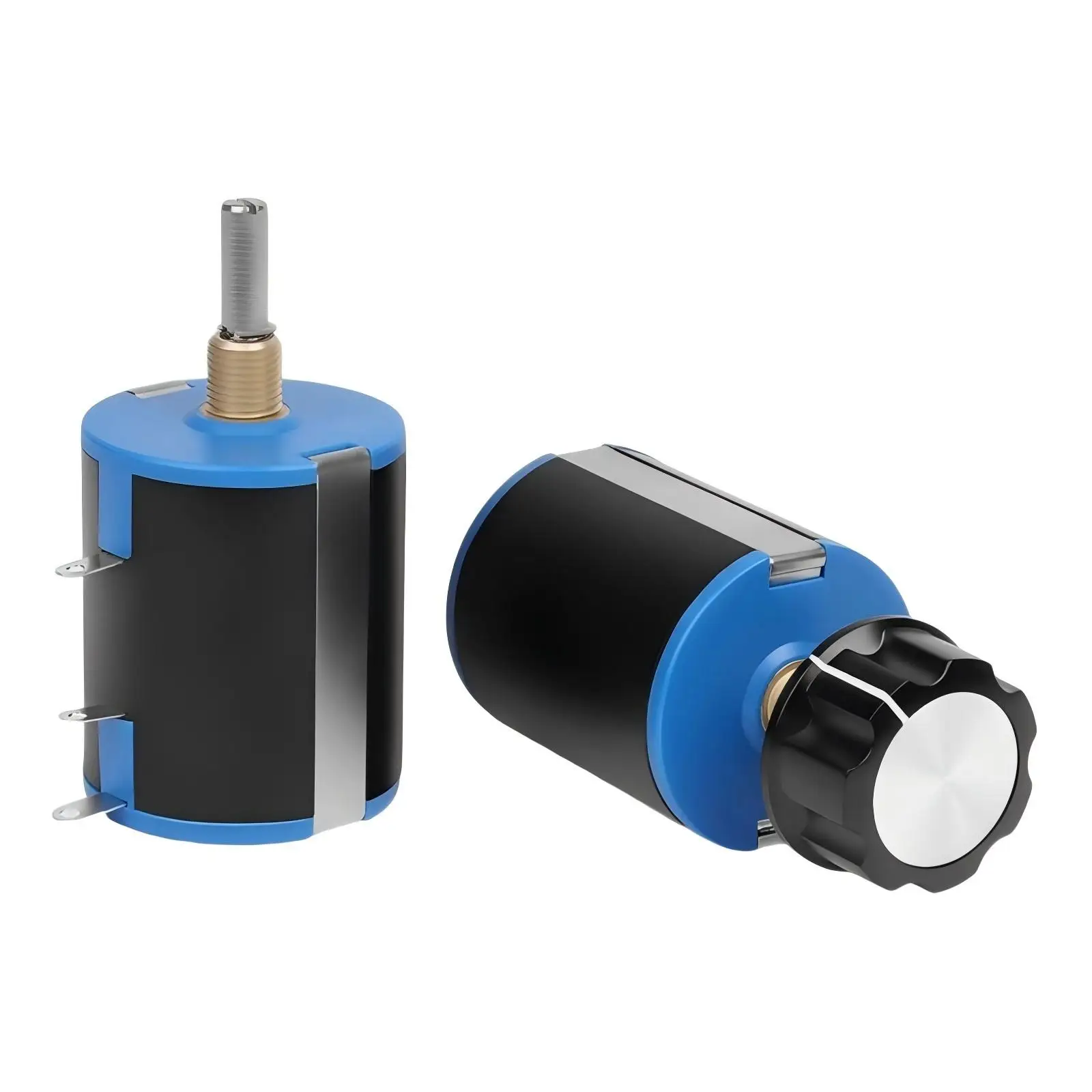

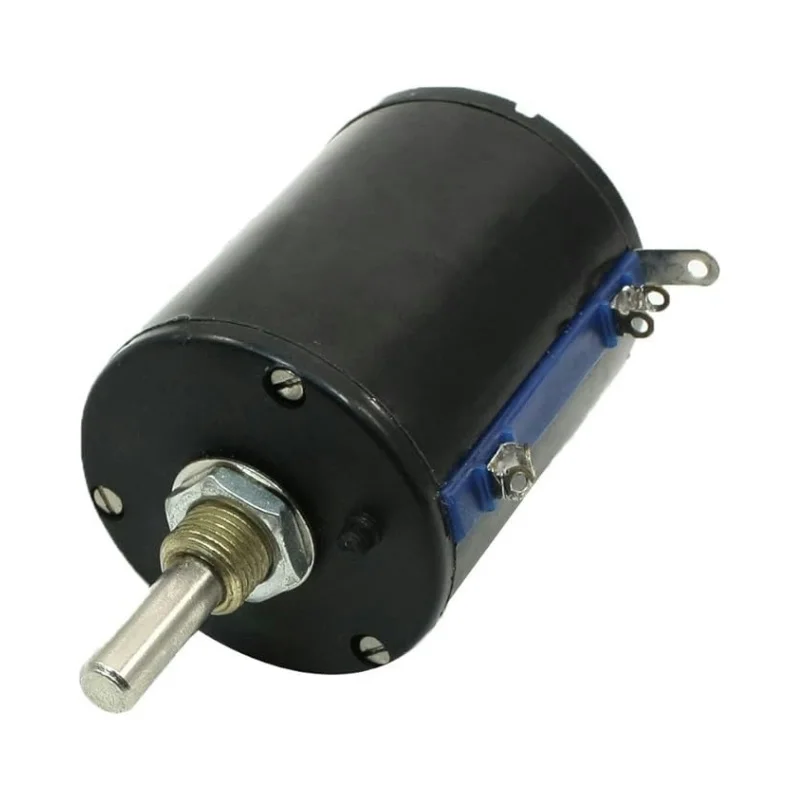

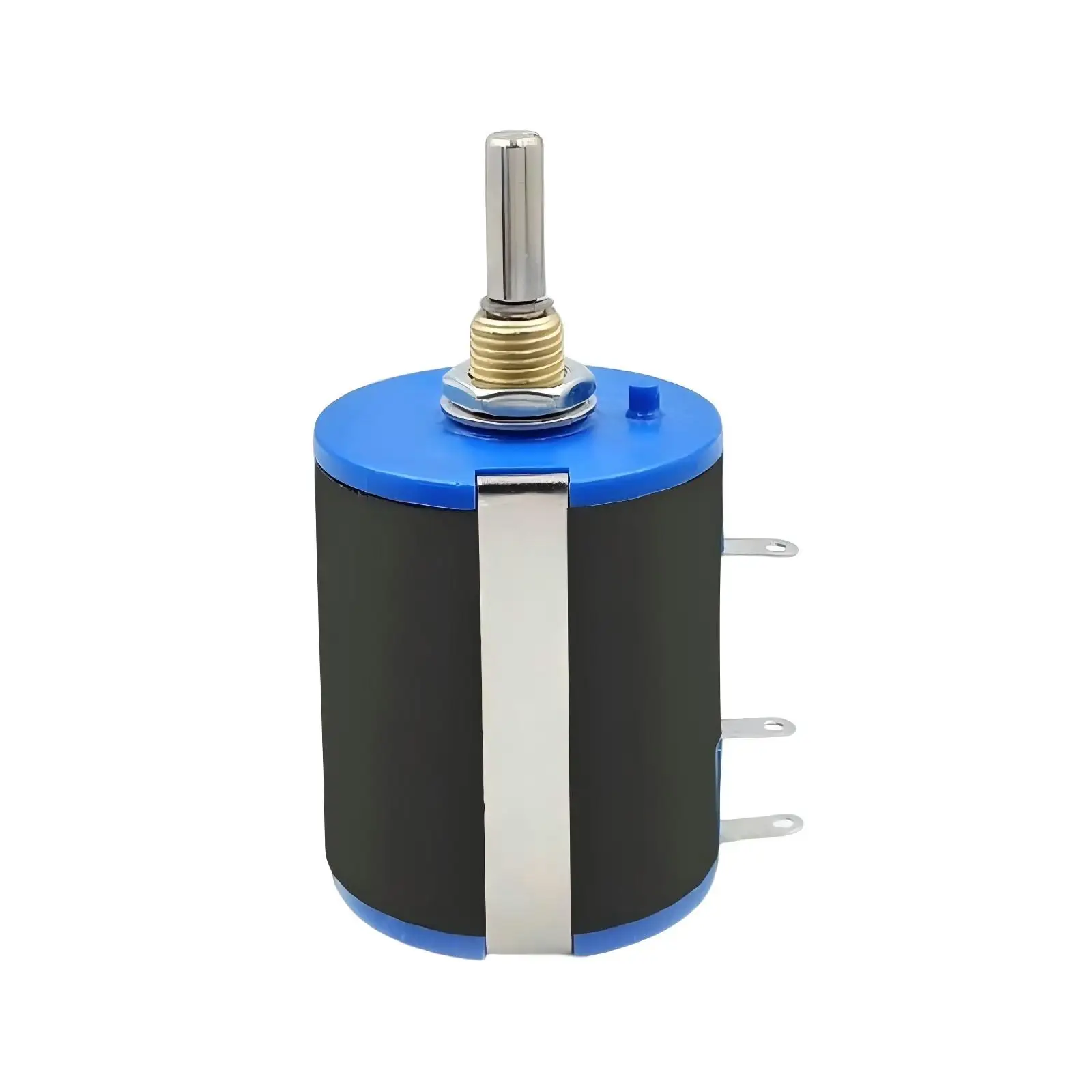

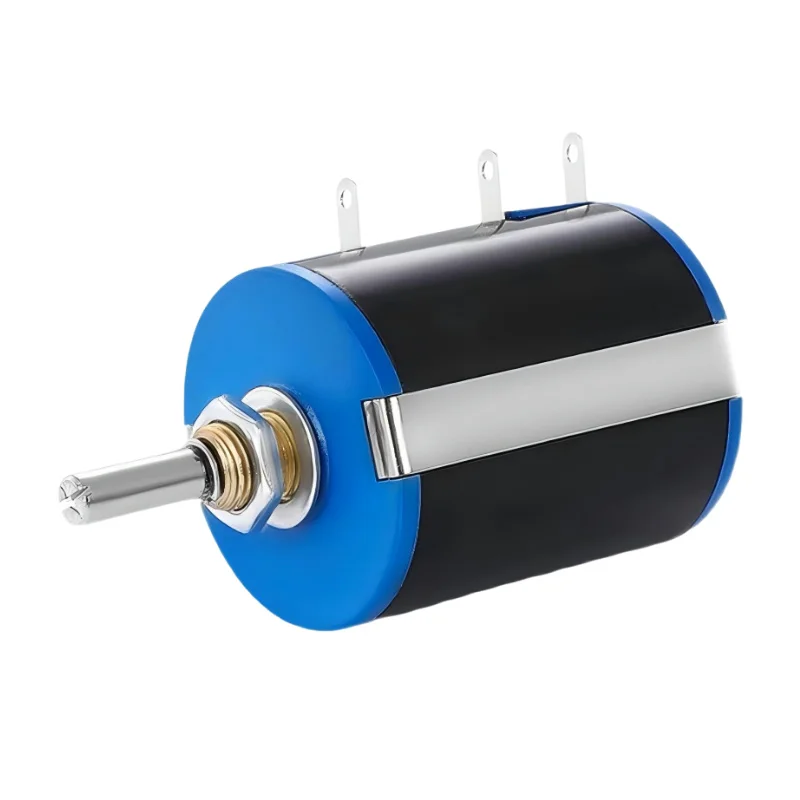

WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer Images
