product name:

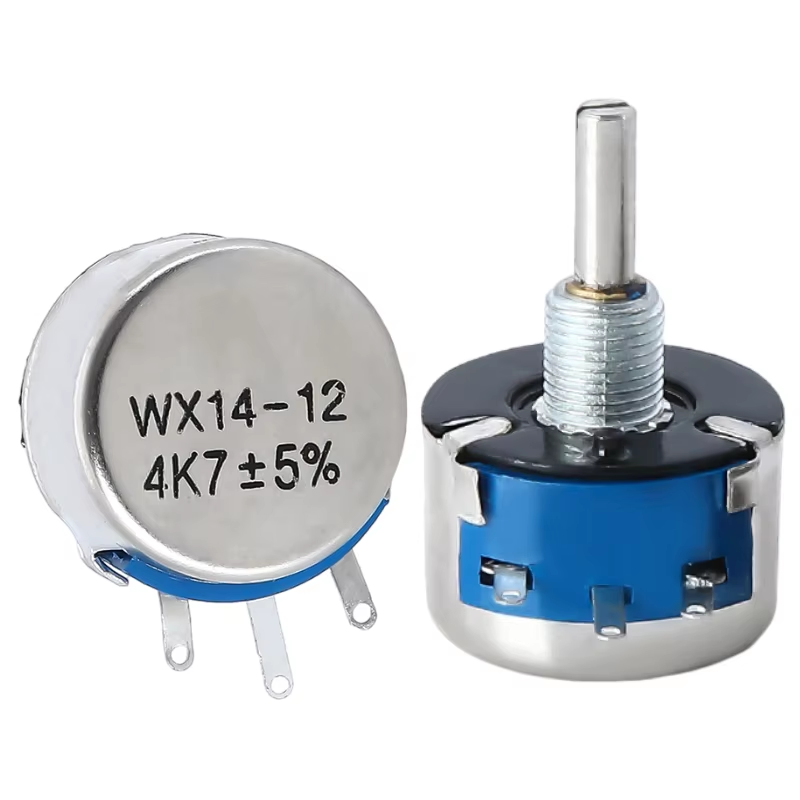

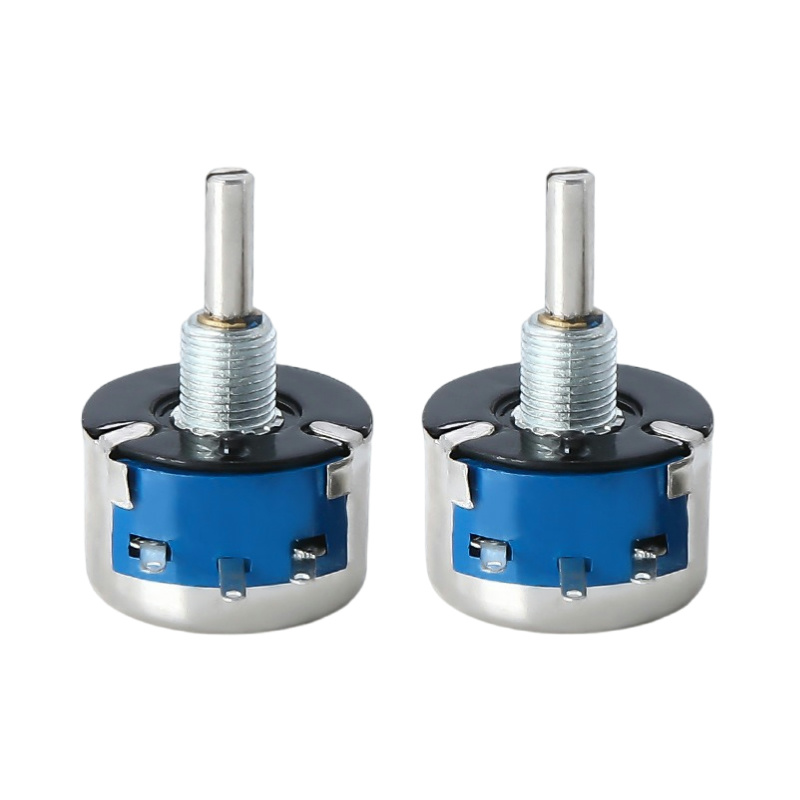

WX14-12 single-turn wire winding potentiometer
product description:
The WX14-12 single-turn wire-wound potentiometer is a precision electronic component that adopts a single-turn wire-wound design, with stable resistance value and good adjustment performance. It is usually used in electronic instruments, instruments and electronic equipment, providing accurate resistance value adjustment function. This potentiometer has high mechanical durability and reliability, can withstand certain limit voltage and power consumption, and is suitable for a variety of application scenarios.
Product Features:
- Precision Design:
- It adopts a single-turn wirewound design, featuring a compact and precise structure that provides stable resistance values and excellent adjustment performance.
- Wide Resistance Range:
- The resistance range typically spans from 22Ω to 27KΩ (specific ranges may vary by manufacturer or custom requirements), accommodating the needs of various electronic devices and systems.
- Superior Adjustment Performance:
- The resistance adjustment is usually rotational, with a mechanical travel of 300°±10°, offering a broad adjustment range and precise adjustment accuracy.
- High Mechanical Durability:
- It exhibits high mechanical durability, withstanding frequent adjustment operations to ensure stability and reliability over extended use.
- High Electrical Performance:
- Capable of withstanding a maximum voltage of 200V and a power dissipation of 3W at 70°C, ensuring normal operation in harsh electrical environments.
- Multiple Resistance Options:
- It supports multiple resistance options, allowing for customization based on customer needs, providing personalized resistance solutions.
Product size:
Specification parameters:
| product name | Single turn wirewound potentiometer | model | WX14-12 | Resistance | ±5%,±10% |
| package diameter | 24mm | shape | round | number of turns | 1turn |
| sealable | ip40 | shaft | nickel plated rail | element | wirewound |
| terminal | solder lug | taper-linear | x | linearity | ±5%～±10% |
| resistance-minimum | 1Ω | resistance-maximum | 22k | tolerance resistance | ±5%/±10% |
| power-rating | 3w | angle of rotation | 300° | rotational life (no load) cycles | 10000 |
| shaft diameter | 4mm | shaft length | 20mm | panel diameter | 23mm |
application area:
Widely used in electronic instruments, meters, electronic equipment, as well as research institutions and civilian household appliances, it is suitable for various occasions requiring precise resistance adjustment.
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
