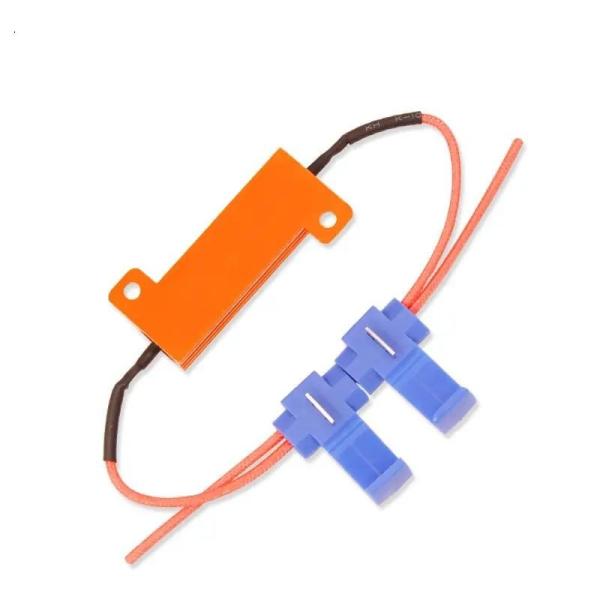

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

Brand Name : BONENS

Model Number : RX24

Place of Origin : China

Rated Power : 50w

Operating voltage range : <1.5kV

Rated resistance range : 6rj

Maximum withstand voltage : 3000V

Temperature drift range : ≤400ppm/℃

Working temperature range : -55℃~+275℃

Contact Now

Car Load Resistor 50W 6 ohm

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

Product Description

1.50W 6 ohm Image:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

Test items
Standard
Test Methods
Short time overload
±5%,±2%,±1%
2.5 times power/5 seconds
Temperature coefficient
±200PPM/°C
Test temperature:indoors temp.100°C
Resistance to solder heat
±1%
Solder temp:350±10°C time:3 seconds
Dielectric withstanding voltage
No breakdown or flashover
500V for 60 seconds
Humidity Load Life
±0.5%
1.5hr ON,0.5hr OFF at 40±2°C,90-95&RH for 1000hrs
Load Life
±2.0%
Rated voltage 1.5hrON,0.5hr OFF at 25°C for 1000hrs
Solderability
At least 95% coerage
235±5°C for 2±0.5 seconds

2.Dimentions checking:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

3.Packaging:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

4.How to use:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

5.Our Other Resistors:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

Company Information

Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.

Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.

We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith!

Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors
